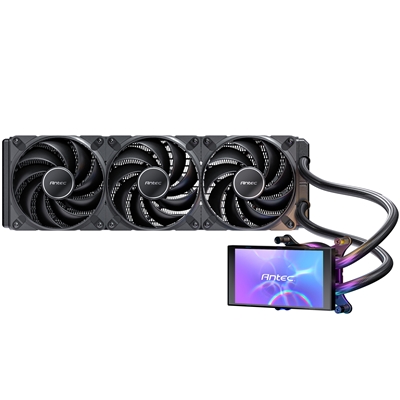

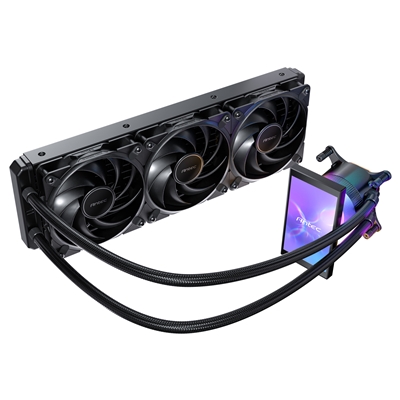

Antec Vortex View 360

ARGB Liquid CPU Cooler with Rotatable LCD Display

Stunning at Every Angle
Premium cooler with dynamic lighting and sharp design

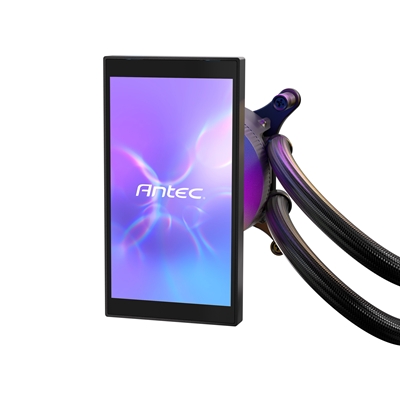

360 Rotatable Ball Joint
Freely adjust and lock the display angle with full-range rotation and built-in twist dial. No tools needed.

5″ IPS Display
1280 x 720 resolution, 60Hz refresh, and 300 nits brightness. Perfect for showcasing system stats, animations, or media. Designed for crystal-clear visibility through case windows at any angle.

RGB Backglow System
An addressable RGB panel behind the display delivers customizable ambient lighting across the pump block and surrounding components. Sync via Antec iUnity or set custom lighting zones.

Quiet Pump Acoustics
Up to 30% quieter than previous-generation models, the Vortex View pump is engineered for low-resonance operation and delivers sub-14 dBA acoustics at 2800 RPM.

9th Gen Asetek Cooling Platform
Supports overclocking up to 400W TDP with a redesigned pump and impeller that improve thermal efficiency, reduce vibration, and enable dynamic temperature control.

Elastic and Durable High-Density Tubing
Durable tubing protection against external damage.

Ready-to-Install Cooling
Pre-applied thermal paste ensures proper contact and effortless installation.

Brand-New iUnity 2.0
Take full control of your system with iUnity 2.0-adjust fan and pump curves, customize per-zone RGB lighting on the Vortex View, and personalize what’s shown on the panel.

USB 3.0 Hub with Passthrough
Easily connect the pump to your motherboard while keeping front-panel USB ports accessible.

Thermal Contact Optimization
Designed for optimal contact and efficient thermal transfer. Better cooling starts with proper
orientation: 6 o’clock for Intel, 3 o’clock for AMD.

Specifications

Fan

Dimensions
120 x 120 x 25 mm

Type
PWM Fan

Speed
400±100~2000±150 RPM

Airflow
59.23 CFM (max.)

Noise
28.6 dB(A)

Air pressure
2.46 mmH2O (max.)

Lifespan
50,000 hours / 25C

Connector
4-pin PWM

Dimensions
394 x 120 x 27 mm

Material
Aluminum

Connector
PUMP: 4-pin Molex

Lifespan
50,000 hours

Noise
=27 dB(A)

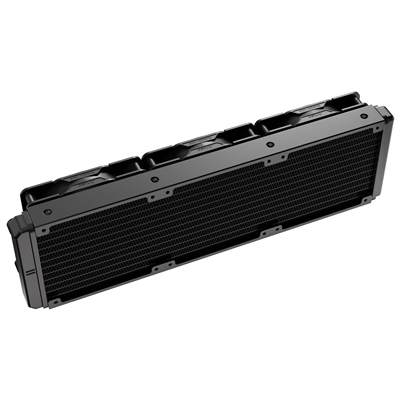

Radiator

Dimensions
394 x 120 x 27 mm

Material
Aluminum

Head

Connector
PUMP: 4-pin Molex

Lifespan
50,000 hours

Noise
=27 dB(A)

Socket Compatibility
Intel:LGA115X / 1200 / 1700 / 1851
AMD:AM4 / AM5

Warranty
6 Years

Net Weight
1.79 Kg

Gross Weight
2.81 Kg
