ASRock TC-1650T, 1600W ATX Power Supply Unit, 80 PLUS TITANIUM Certified. 135mm Striped Axial FDB Fan, High Efficiency PSU

ASRock TC-1650T Power Supply Unit

Features
80 PLUS TITANIUM Certified
Cybenetics TITANIUM and LAMBDA A+ Certified
ATX3.1 & PCIe5.1 Ready
Fully Modular Cable Design
Native 12V-2×6 Connector Dual Color Design with TempGuard
100% Highly Reliable Japanese Capacitors
135mm Striped Axial FDB Fan
iCool Intelligent Fan Control Mode
5V BOOST Mode
Remarkable 10-Year Warranty

Powerful Future Be Ready For ATX 3.1 & PCIe 5.1
The ASRock TAICHI series power supply supports both current and future standards, fully compliant with ATX12V V3.1 and PCIe Gen 5.1. Ideal for both current systems and future builds, this power supplies can handle up to 235% power excursion and respond swiftly to power spikes, ensuring reliable, safe power for your components.

Native PCIe 12V-2×6 Cable

Dual Color Design
With ASRock Classic Green connectors, users can easily see if the connector has been plugged properly.

Cable Over-Temperature Protection
The NTC sensor at the VGA connector monitors the temperature and sends signal the PSU to ensure safe operation.

+5V BOOST Mode Voltage Compensation Mechanism
When this switch is enabled, it boosts the +5V voltage to maintain optimal performance.
If no voltage drop occurs, the PSU will regulate the +5V rail to approximately +5.15V, ensuring consistent power delivery.

iCOOL Intelligent Fan Control Mode
iCOOL Mode ON: The power supply runs more efficiently. The fan stays off during low to medium loads, reducing noise and improving energy efficiency. The fan only activates when the load or temperature increases.
iCOOL Mode OFF: The fan runs continuously, regardless of load. This may increase noise slightly but provides consistent cooling and better performance under heavy loads.

80 PLUS & CYBENETICS TITANIUM CERTIFIED
The TAICHI Series Power Supply guarantees unmatched power efficiency and peak performance, delivering exceptional reliability for the most demanding systems.

CYBENETICS LAMBDA A+
The Taichi series power supply operates at less than 20 dB of noise on average, earning the prestigious Cybenetics Lambda A+ certification. This recognition underscores the Taichi series’ outstanding noise control performance, making it an exceptional choice for users seeking ultra-quiet operation.

135mm Fluid Dynamic Bearing Fan
The fluid seal design and the herringbone structure provides an extremely long lifespan and noise minimization.

Infineon CoolMOS + SiC SBD
The industrial-leading components deliver high efficiency and reliability.

Japanese Capacitors
105 C Japanese-made Capacitor and Solid Capacitor, makes prolonged life span possible.

Safety First with ASRock
Full suite of protections to keep all components safe during normal to extreme power levels.
ASRock offers an outstanding 10 –Year warranty, guaranteeing long term reliable and peace of mind operation.

Specifications

80 Plus Efficiency
TITANIUM

Cybenetics (ETA/LAMBDA)
TITANIUM / A+

ATX 12V Version
ATX 3.1

AC Input
115-240V~, 50-60Hz, 15-8A
100-240V~, 50-60Hz,15-8A

Continuous 12V output
137.5 A

Warranty (Years)
10

Dimensions(L x W x H)
180mm x 150mm x 86mm

Fan
135mm Striped Axial FDB Fan

iCOOL MODE
Yes (Switch)

Protections
OCP, SCP, OVP, UVP, OTP, OPP

Capacitors
All Japanese

5V BOOST
Yes (Switch)

PCIe 5.1 Cable TempGuard
Yes

Total Power Excursion
235%

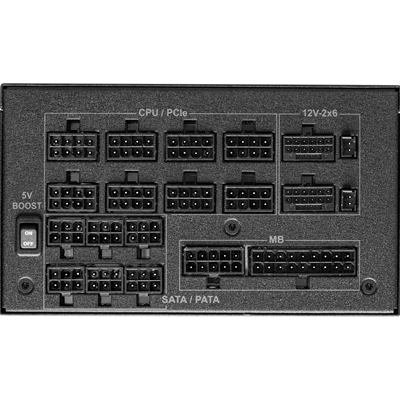

100,000

Cable Type
24pin & 12+4pin: Sleeved
Others: Individual Braided Pattern

Motherboard cable (24pin)
1

EPS 12V CPU connectors (4+4pin)
2

PCIe5.1 connectors(12+4pin) Dual Color
2

PCIe connectors (6+2pin)
8

4-pin Peripheral connectors
6

SATA 5-pin connectors
12
