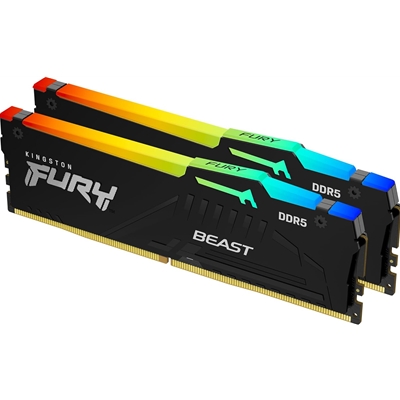

Kingston FURY Beast KF560C30BBEAK2-64 64GB (2x 32GB) DIMM System Memory, 6000MHz, DDR5, CL30, Black, RGB, Intel XMP, AMD EXPO

Kingston Fury Beast 64GB (32GB 4G x 64-Bit x 2 pcs.) DDR5-5600 CL30 288-Pin DIMM Kit

Description
Kingston FURY KF560C30BBEAK2-64 is a kit of two 4G x 64-bit (32GB) DDR5-6000 CL30 SDRAM (Synchronous DRAM) 2Rx8, memory module, based on sixteen 2G x 8-bit FBGA components per module. Each module kit supports AMD EXPO v1.1 and Intel Extreme Memory Profiles (Intel® XMP) 3.0. Total kit capacity is 64GB. Each module has been tested to run at DDR5-6000 at a low latency timing of 30-36-36 at 1.4V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical andmechanical specifications are as follows

features
Power Supply: VDD = 1.1V Typical
VDDQ = 1.1V Typical
VPP = 1.8V Typical
VDDSPD = 1.8V to 2.0V
On-Die ECC
Height 1.37” (34.9mm), w/heatsink

Specifications

Memory Capacity
64GB Kit (32GB x2)

Module Quantity
2 Modules

Speed (Data Rate)
6000MT/s (PC5-48000)

Speed (Clock Rate)
3000Mhz

Module Type
DIMM

Error Check
Non-ECC

Model/Series/Type
Fury Beast

CAS Latency
CL36

Form Factor
DDR5

CL(IDD)
40 Cycles

Row Cycle Time (tRCmin)
48ns(min.)

Refresh to Active/Refresh
295ns(min.)

Row Active Time (tRASmin)
32ns(min.)

UL Rating
94 V – 0

Operating Temperature
0C to +85C

Storage Temperature
-55C to +100C

SKU
KF560C36BBEAK2-64

EAN/UPC Code
740617331882

Brand
Kingston

Rank
2R

Warranty
Lifetime

Pins
288 Pin
