Gigabyte NVIDIA GeForce RTX 5060 Aero OC 8GB GDDR7 Graphics Card, 3840 CUDA Cores, 2595 MHz Core Clock, Triple Fan, 3x DisplayPorts / 1x HDMI Port

GeForce RTX 5060 AERO OC 8G

FEATURES

Powered by the NVIDIA Blackwell architecture and DLSS 4
Powered by GeForce RTX 5060
Integrated with 8GB GDDR7 128bit memory interface
WINDFORCE cooling system
Hawk fan
Server-grade Thermal conductive gel
RGB Lighting
Dual BIOS (Performance / Silent)
Reinforced structure

CORE CLOCK
2595 MHz (Reference card : 2497MHz)

Graphics Processing
GeForce RTX 5060

Core Clock
2595 MHz (Reference card : 2497MHz)

CUDA Cores
3840

Memory Clock
28 Gbps

Memory Size
8 GB

Memory Type
GDDR7

Memory Bus
128 bit

Card Bus
PCI-E 5.0

Digital max resolution
7680×4320

Multi-view
4

Card size
L=281 W=117 H=40

PCB Form
ATX

DirectX
DirectX 12 API

OpenGL
4.6

Recommended PSU
500W

Power Connectors
8 Pin*1

Output

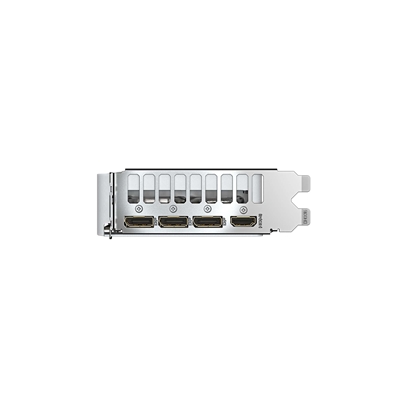

DisplayPort 2.1b *3
HDMI 2.1b *1

Accessories
Quick guide
