Fast Dual-Band Wi-Fi
Simultaneous 450 Mbps on 2.4 GHz and 1300 Mbps on 5 GHz totals 1750 Mbps Wi-Fi speeds.

High-Density Connectivity
MU-MIMO, Load Balance, and professional antennas improve capacity in high-density environments to connect more devices simultaneously.

Integrated into Omada SDN
Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.

Centralized Management
Cloud access and Omada app for ultra convenience and easy management.

Seamless Roaming
Even video streams and voice calls are unaffected as users move between locations.

PoE Support
Support both standard 802.3af/at and Passive PoE (PoE adapter included) for flexible installations.

Secure Guest Network
Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.

Specifications

HARDWARE FEATURES

Interface

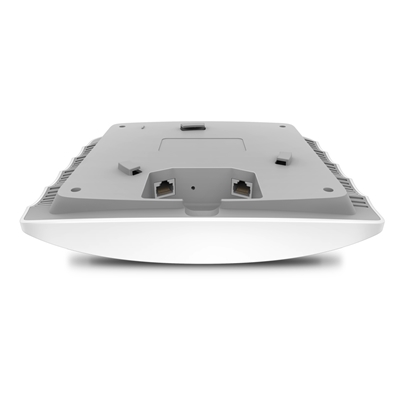

2 x Gigabit Ethernet (RJ-45) Port (One port supports IEEE802.3af/at PoE and Passive PoE)

Physical Security Lock
Yes

Button
Reset

Power Supply
802.3af/at PoE
48V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)

Power Consumption
12.3 W

Dimensions ( W x D x H )
8.1 x 7.1 x 1.5 in (205.5 x 181.5 x 37.1 mm)

Antenna Type
Internal Omni
2.4 GHz: 3 x 3.5 dBi
5 GHz: 3 x 4 dBi

Mounting
Ceiling /Wall Mounting (Kits included)

Wireless Standards
IEEE 802.11ac/n/g/b/a

Frequency
2.4GHz and 5GHz

Signal Rate
5 GHz: Up to 1300 Mbps
2.4 GHz: Up to 450 Mbps

Wireless Functions
Multiple SSIDs (Up to 16 SSIDs, 8 for each band),Enable/Disable Wireless Radio, Automatic Channel Assignment, Transmit Power Control (Adjust Transmit Power on dBm), QoS(WMM), MU-MIMO, Seamless Roaming, Band Steering, Load Balance, Airtime Fairness, Beamforming, Rate Limit, Reboot Schedule, Wireless Schedule, Wireless Statistics based on SSID/AP/Client

Wireless Security
Captive Portal Authentication, Access Control, Wireless Mac Address Filtering, Wireless Isolation Between Clients, SSID to VLAN Mapping, Rogue AP Detection, 802.1X Support, 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK

Transmission Power
CE: =20 dBm (2.4 GHz) =23 dBm (5 GHz)
FCC: =24 dBm (2.4 GHz) =24 dBm (5 GHz)

Omada App
Yes

Centralized Management
Omada Cloud-Based Controller, Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller

Cloud Access
Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)

Email Alerts
Yes

LED ON/OFF Control
Yes

Management MAC Access Control
Yes

SNMP
v1, v2c

System Logging Local/Remote Syslog
Local/Remote Syslog

SSH
Yes

Web-based Management
HTTP/HTTPS

L3 Management
Yes

Multi-site Management
Yes

Management VLAN
Yes

Certification
CE, FCC, RoHS

Package Contents
AC1750 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP265 HD, Gigabit Passive PoE Adapter, Power Cord, Mounting Kits, Installation Guide

System Requirements
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux

Environment
Operating Temperature: 0–40C (32–104F)
Storage Temperature: -40–70C (-40–158F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
