Mercusys 300 Mbps Wi-Fi Range Extender

Eliminate WiFi Dead Zones
Boosts WiFi signals to previously unreachable or hard-to-wire areas flawlessly

300 Mbps Daily WiFi
Enjoy a fast and stable extended WiFi anywhere up to 300 Mbps, meeting the needs of your daily life

Easy One-Touch Setup
Simply press the WPS button to expand your WiFi coverage in seconds

Signal Indicator
Multicolor LED helps you find the right location for your range extender for the best WiFi extension

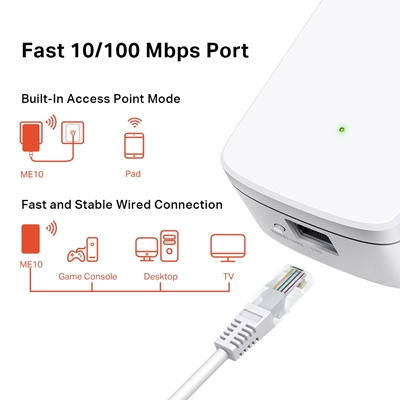

Fast 10/100 Mbps Port
Provides speedy wired connections for PCs, IPTVs, and game consoles
Works with Any Router or Wireless Access Point

Specifications

Wireless

Wireless Standards
IEEE 802.11b/g/n 2.4 GHz

Frequency
2.4 – 2.5 GHz

WiFi Speeds
Up to 300 Mbps

Reception Sensitivity
2.4GHz:
11B 1M < -94 dBm
11N HT40 MCS7 < -72 dBmTransmission Power
= 20 dBm

Wireless Security
WPA-PSK/WPA2-PSK

Hardware

Dimensions
101 x 60 x 36 mm

Interfaces
10/100Mbps RJ45 Port

Button
RESET/WPS Button

Power
= 3.2 W

Others
Certifications
CE, RoHS

Package Contents
Wi-Fi Range Extender (ME10)
Quick Installation Guide

Environment
Operating Temperature: 0°C~40°C (32°F~104°F)
Operating Humidity: 10%~90% Non-Condensing
