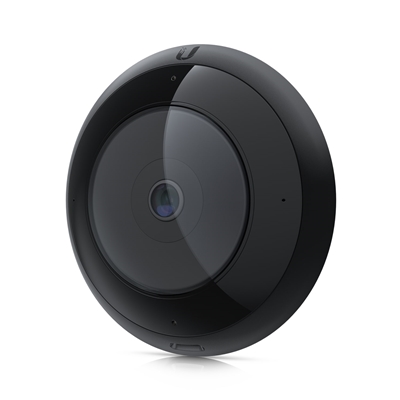

Ubiquiti UVC-AI-360 UniFi Protect PTZ Camera AI 360

Ubiquiti UVC-AI-360 Camera is a PTZ (pan-tilt-zoom) camera that provides overhead, panoramic surveillance of indoor and outdoor spaces. The UVC-AI-360 streams crystal clear 1920 x 1920 video, running at a smooth 30 frames per second, it also has built-in IR LEDs to ensure every frame is captured flawlessly, no matter what time of day or night.

UVC-AI-360 Camera features an ultra-wide 360° fisheye lens and a 5MP CMOS sensor, the AI 360 can quickly detect fine details within its expansive coverage area and capture them with extreme clarity. The AI 360 is housed in weather and tamper-resistant material, making it an ideal choice for outdoor areas that might be prone to harsh weather or risk of vandalism; ideal for shopping centres, parking lots, airports, train stations and other high traffic areas.

The UVC AI 360 is a sophisticated, feature-rich camera, but it’s also designed to be incredibly easy to set up and incorporate into existing UniFi Protect deployments. It can be adopted in minutes and managed with either the UniFi Protect web application or mobile app.

Key Features
Captures 1920 x 1920, 30 FPS video
5 MP CMOS sensor
Ultra-wide, 360° fisheye lens
IPX4-rated, weatherproof housing
IK08-rated tamper resistance
Built-in IR LEDs for clear nighttime surveillance
Powered by PoE

Specification

Mechanical

Dimensions
147 x 49 mm (5.77 x 1.94″)

Weight
Without mount: 655 g (1.44 lb)
With outdoor accessory: 685 g (1.51 lb)

Enclosure materials
Aluminum alloy, polycarbonate, hard-coated dome

Mounting materials
Polycarbonate, stainless steel

Weatherproofing
IPX4

Resistance
IK08

Optics

Sensor
5 MP CMOS sensor

Lens
Fisheye lens

View angle
360°

Night mode
Built-in IR LED illumination and IR cut filter

Video

Video compression
H.264, MJPG

Resolution
1920 x 1920 (1:1)

Maximum frame rate
30 FPS

Image settings
Colour, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, masking, text overlay

System

Processor specs
ARM quad-core Cortex -A53

Memory information
2 GB LPDDR4

Flash memory support
8GB eMMC

Management interface
UniFi Protect

Networking interface
GbE RJ45 port

Power method
PoE

Power supply
48VDC, 0.18A PoE

Max. power consumption
8.64W

Supported voltage range
37 to 57VDC

Link/activity LED
Yes

Button
Factory reset

Operating temperature
-20 to 40° C (-4 to 104° F)

Operating humidity
10 to 90% noncondensing

Certifications
FCC, IC, CE

Audio
MicrophoneYes (can be disabled in software)

Speaker
Yes

Software

UniFi OS application
UniFi Protect

Mobile apps
UniFi Protect iOS and Android

Box Contents
1x UVC-AI-360
1x Indoor Lens Cover
1x Outdoor Lens Cover
1x Lens cover Remover
1x Wall Mount Kit (Screws Included)
